Y7002 - 7 Inch Color LCD Car DVD Player TV iPOD Bluetooth GPS

€299.00

Main Function Instruction:

• Built-in WINCE 5.0 navigation system GPS.
• A map SD card is included as gift, the map would loaded per buyers location.
• 7 inch touch screen, standard double din size (100mm) height.
• Built-in Bluetooth Handfree.
• Multi-angle motorized adjustable front panel.
• Compatible with:
  DivX / DVD / DVD-RS / DVD+RS / DVD_RW / CD_R / CD_RW

   MP3 / MP4 / WMA format. Support JPEG display.

• iPod control.
• AUX, TV, Radio.
• Support DVD/MP3/JPEG/MP4 touch operation playing.
• Compatible with PAL/NTSC/SECAM/SECAM_L TV system.
• 100 stations preset.
• Support USA/Europe/Russia radio system.
• Support SD card reader.
• Support USB 2.0.
• Built-in Amplifier & region free DVD player. 4x60W max power output.
• Preset manifold audio/video system.
• 1x audio input.
• 1x video input.
• 2x audio output.
• 2x video output.
• 1x super-woof audio preamp output.
• Rear view camera input.
• Wireless remote control.
• 18FM / 12AM presets.
• RDS built-in.

 Main Menu Interface Instruction:

Technical Parameters of TFT-LCD Screen
LCD screen size	7 inch
LCD screen ratio	16:9
Spot pitch	0.107(h) x 0.372(v)
Resolution	480(RGB) x 234
Contrast	150:1
Brightness	300cd/m2
Response speed	R: 30/ F:50
Viewing angle	U:15/ D:35      L/R:55
Original luminous lamp	LED
Lamp longevity	Over 10 thousand hours
Power supply	DC 13.8V
Outer dimension	176mm(W)x100mm(H)x183mm(D)
Net weight	about 3.1KG
Standby current	≤10MA

GPS Specifications:

GPS Specifications
Main frequency	400MHz
Operation system	WINCE5.0 CORE
Support audio type	MP3/ PCM/ WMA
Support video type	ASF/ AVI/ WMV/ DIVX
Audio output	stereo CD quality
Chip set	SiRF Star III
Frequency	1.575GHz
Channel number	20 channels
Tracking sense degree	-159dBm
Position accuracy	10m, 2D RMS, 5m, 2D RMS, WAAS enable
Velocity	0.1m/s
Data renewal rate	1HZ
Re-catching time	average 0.1s
Hot start time	average 1s
Warm start time	average 38s
Cold start time	average 42s
The biggest fixed height	18,000m
The biggest velocity	515m/s

TV Technical Parameters:





TV Technical Parameters
Frequency range	48.25MHz-847.25MHz
TV display system	PAL/NTSC/SECAM/SECAM_L
Audio system	DK/I/BG
Radio Technical Parameters
FM frequency range	87.5MHz-108.0MHz
AM frequency range	522KHz-1620KHz
FM sensitivity	≤25dB
AM sensitivity	≤45dB
Signal-noise ratio (S/N)	≥50dB
Distortion	≤0.3%

DVD Technical Parameters:

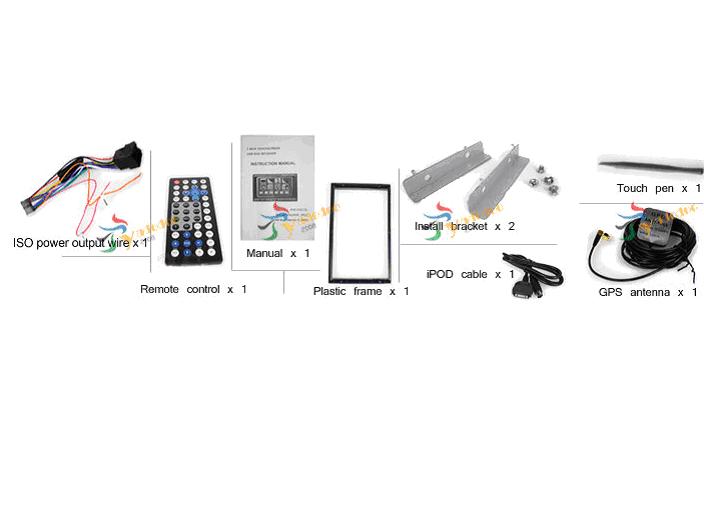

Package Includes:
